一、絲桿支撐座結構：

1、 Screw support seat structure:

1、支撐座有8個型號，對標準滾珠螺桿庫存品的軸端、成品，預備了標準化的支撐座EK、EF、FK、FF型，對一般滾珠螺桿預備了標準支撐座AK、AF、BK、BF型。

1. There are 8 models of support seats available, including standardized support seats EK, EF, FK, and FF for standard ball screw inventory and finished products, and standard support seats AK, AF, BK, and BF for general ball screws.

2、固定側裝有經預壓調整的JIS5級或P0級的角接觸滾珠軸承，可依選用螺桿等級做符合經濟的搭配。滾珠絲杠認準鈦浩，高精度穩定的回轉性能。

2. The fixed side is equipped with JIS5 or P0 grade angular contact ball bearings that have been pre pressed and adjusted, and can be economically matched according to the selected screw grade. The ball screw recognizes the titanium Hao, with high-precision and stable rotational performance.

3、支撐側使用深溝槽滾珠軸承。

3. Deep groove ball bearings are used on the support side.

4、支撐座EK、BK、FK和AK型的內部軸承含有適量的鋰皂基潤滑脂，用特殊密封。所以這些型號能夠長期使用。

4. The internal bearings of the support seats EK, BK, FK, and AK contain an appropriate amount of lithium soap based grease and are sealed with a special seal. So these models can be used for a long time.

二、絲桿支撐座的安裝：

2、 Installation of screw support seat:

1、將固定側安裝到螺桿上。

1. Install the fixed side onto the threaded rod.

2、將固定側插入，擰緊鎖緊螺帽，用墊塊和內六角固定螺栓將其固定。

2. Insert the fixed side, tighten the locking nut, and secure it with a cushion block and an internal hexagonal fixing bolt.

3、支撐側軸承用止動環固定到螺桿軸上，并裝入支撐側支撐座。

3. The support side bearing is fixed to the screw shaft with a stop ring and installed into the support side support seat.

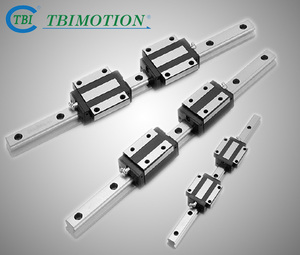

三、導軌絲杠工作臺程基座上的安裝：

3、 Installation on the base of the guide rail screw workbench:

1、使用支座把滾珠螺桿螺帽安裝在工作臺時，將螺帽插入支座并暫時擰緊。

1. When installing the ball screw nut on the workbench using a support, insert the nut into the support and temporarily tighten it.

2、將固定側暫時擰緊到基座上。這時，請將工作臺靠近固定側支撐單元并對準軸，調整工作臺使基能平滑移動。以固定側為基準時，請調整滾珠螺桿螺帽與工作臺或支座內之間保持一定間隙。以工作臺為基準時，用薄墊片調整（角型支撐單元用）、或將螺帽外表面與安裝部內面之間留一定間隙（圓型支撐座用）進行調整。

2. Temporarily tighten the fixed side to the base. At this point, please place the workbench close to the fixed side support unit and align it with the center of the shaft, and adjust the workbench so that the foundation can move smoothly. When using the fixed side as the reference, please adjust the ball screw nut to maintain a certain gap between the workbench or support. When using the workbench as a reference, adjust with thin shims (for angle support units) or leave a certain gap between the outer surface of the nut and the inner surface of the installation part (for circular support seats) for adjustment.

3、將工作臺靠近固定側支撐單元，并對準軸，使工作臺往返數次，一直調整到螺帽整個行程都能平滑運動，并暫時將支撐座擰緊在基座上。確認精度及完全擰緊支撐單元用千分表一邊測試滾珠螺桿軸端的擺動及軸向間隙，一邊按順序完全擰緊滾珠螺桿的螺帽、螺帽支座、固定側、支撐側。

3. Place the workbench close to the fixed side support unit and align it with the center of the shaft, allowing the workbench to travel back and forth several times until the entire stroke of the nut can move smoothly, and temporarily tighten the support seat on the base. Confirm the accuracy and fully tighten the support unit. Use a dial indicator to test the swing and axial clearance of the ball screw shaft end while fully tightening the nut, nut support, fixed side, and support side of the ball screw in sequence.

四、與馬達的連接

4、 Connection to motor

1、將馬達支座安裝到基座上。

1. Install the motor support onto the base.

2、用聯軸節將將馬達與滾珠螺桿連接起來。(注意安裝精度)

2. Connect the motor to the ball screw using a coupling. (Pay attention to installation accuracy)

3、請注意進行充分的試車運行。

3. Please pay attention to conducting sufficient trial operation.

4、請注意清洗臺面。

4. Please pay attention to cleaning the countertop.
