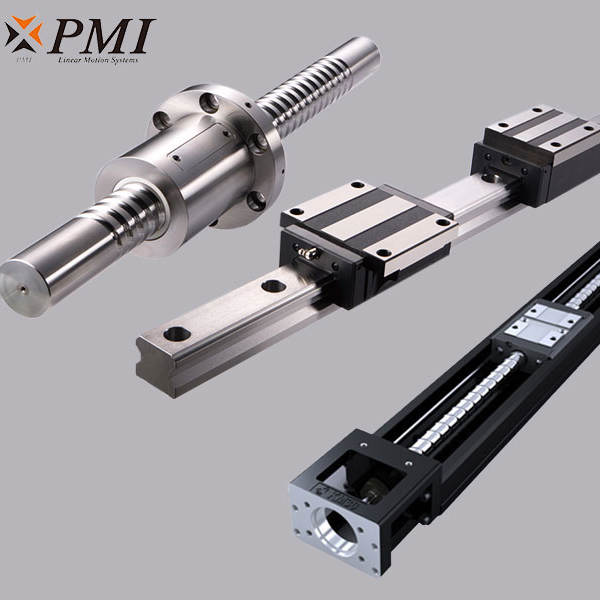

The three-axis positioning system of the platform type automatic dispensing machine can not be separated from the synchronous belt and screw guide rail which play a role in movement. Then why are some driven by stepping motor synchronous belt, and some driven by servo lead screw guide instead? Many friends don't know how to choose other configurations. What are the essential differences between them? What is the difference between the synchronous belt and the lead screw guide rail of Ruide Xinping automatic dispensing machine.

從運作精度來說，運動軸由同步帶輪直接帶動滑臺，所以位移的重復精度在0.05mm左右。而絲桿靠滾珠驅動能確保精度在0.02mm。如果對于精度要求高的就可以選擇絲桿平臺式自動點膠機。

In terms of operation accuracy, the motion axis directly drives the sliding table by the synchronous pulley, so the displacement repetition accuracy is about 0.05mm. The screw rod driven by ball can ensure the accuracy of 0.02mm. If the precision requirement is high, you can choose the screw platform type automatic dispenser.

從運動速度來說，平臺式自動點膠機配置同步帶會比絲桿的運動速度更快。而且加工時的聲音會更小一些。

In terms of movement speed, the synchronous belt of the platform type automatic dispensing machine will move faster than the screw rod. And the sound during processing will be smaller.

不管采用什么樣的配置都是有自身各自的優勢，當然我們也建議在做一般產品的密封和涂膠時采用步進馬達同步帶自動點膠機即可。如果是做芯片點膠或者是五金封膠那就可以采用精度較高的伺服絲桿導軌平臺點膠機。

No matter what kind of configuration is used, it has its own advantages. Of course, we also suggest that the stepping motor synchronous belt automatic dispenser be used for sealing and gluing of general products. If it is used for chip dispensing or hardware sealing, the servo screw guide rail platform dispensing machine with high accuracy can be used.

以上就是為大家介紹的有關導軌絲杠的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.pet998.com

The above is a detailed introduction to the guide screw, and we hope it will be helpful to you. If you have any questions, please contact us. We will provide you with our attitude http://www.pet998.com
