The ball screw module and the synchronous belt linear module are common applications in the factory. Compared with the synchronous belt linear module, the ball screw module has more prominent characteristics such as motion accuracy, load-bearing thrust and load-bearing force. Therefore, when our demand is that the precision is very high and the operation is stable, the ball screw module should be your choice.

那么，精度高，運行平穩的滾珠絲桿模組是有哪些強悍的配件組成的，而這些配件又承擔著哪些重要角色，今天小編就帶著這個問題給大家講解一下。

So, what are the strong parts of the ball screw module with high precision and smooth operation, and what important roles these parts play? Today, Xiaobian will explain this problem to you.

滾珠絲桿直線模組主要由直線導軌、滾珠絲桿、鋁合金型材、滾珠絲桿支撐座、馬達、膜片聯軸器、光電開光等部件組成。

The ball screw linear module is mainly composed of linear guide rail, ball screw, aluminum alloy profile, ball screw support seat, motor, diaphragm coupling, photoelectric switch, etc.

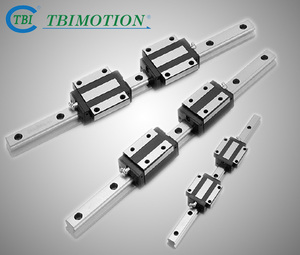

直線導軌又稱滑軌、直線導軌，用于直線往復運動場合，擁有比直線軸承更高的額定負載，同時可以承擔一定的扭矩，可在高負載的情況下實現高精度的直線運動。絲桿直線模組主要運用滾珠直線導軌，相比雙軸心導軌具有更高的精度和負載，使?jié)L珠絲桿模組能夠運用在需要更高精度和更高負載的場合。

Linear guide rail, also known as slide rail and linear guide rail, is used for linear reciprocating motion. It has a higher rated load than linear bearing, and can bear a certain torque. It can realize high-precision linear motion under high load. The ball screw linear module mainly uses the ball linear guide rail, which has higher precision and load than the double axis guide rail, so that the ball screw module can be used in occasions requiring higher precision and load.

滾珠絲桿是將回轉運動轉化為直線運動，或?qū)⒅本€運動轉化為回轉運動。滾珠絲杠由螺桿、螺母、鋼球、預壓片、反向器、防塵器組成。它的功能是將旋轉運動轉化成直線運動，這是滾珠螺絲的進一步延伸和發展，這項發展的重要意義就是將軸承從滾動動作變成滑動動作。而且滾珠絲桿具有效率高、高精度、高速的特點，使它在精密設備，微調工業設備上得到廣泛應用。

Ball screw converts rotary motion into linear motion, or converts linear motion into rotary motion. The ball screw is composed of screw, nut, steel ball, prepress, reverser and dustproof device. Its function is to convert rotary motion into linear motion, which is the further extension and development of ball screw. The significance of this development is to change the bearing from rolling motion to sliding motion. Moreover, the ball screw has the characteristics of high efficiency, high precision and high speed, which makes it widely used in precision equipment and fine-tuning industrial equipment.

鋁合金型材

Aluminum alloy profile

鋁合金型材具有鑄造性能好，耐腐蝕，化學性能穩定，外型美觀等特點。是組合機床和自動線較理想的基礎動力部件動態性能好。滑臺剛度高,熱變形小,進給穩定性高,從而保證了加工狀態下(負荷下)的實際精度。

Aluminum alloy profiles have the characteristics of good casting performance, corrosion resistance, stable chemical properties and beautiful appearance. It is an ideal basic power component for modular machine tools and automatic lines, with good dynamic performance. The sliding table has high rigidity, small thermal deformation and high feed stability, thus ensuring the actual accuracy in the processing state (under load).

以上就是為大家介紹的有關導軌絲杠的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務.http://www.pet998.com

The above is a detailed introduction to the guide screw. I hope it will help you If you have any questions, please contact us We will provide you with professional service http://www.pet998.com
